分辨率		203dpi,300dpi
打印方式		热敏和热转印
最大打印速度		8ips @ 203dpi, 6ips @ 300dpi
最大打印宽度		4.25"(108mm) @ 203dpi, 4.17"(106mm) @ 300dpi
最大打印长度		90"(2,286mm) @ 203dpi, 60"(1,524mm) @ 300dpi
物理尺寸（宽 x 高 x 深）		7.91”(201mm) x 7.13"(181mm) x 9.92"(252mm)
重量		4.73lbs(2.15kg)
处理器
存储		128 MB Flash / 256 MB RAM
接口		Standard: Serial RS232, USB-B, USB Host and Ethernet 10/100Base T Optional: Wi-Fi802.11a/b/g, Bluetooth 5.2/LE
WiFi安全加密		WEP 40/128bit, WPA Personal (PSK), WPA2 Personal (PSK) Enterprise (AES CCMP)
WiFi安全认证		EAP-TLS, EAP-FAST, EAP-TTLs, PEAPv0/MS-CHAPv2, PEAPv1. EAP-MDS, LEAP
电源		External universal switching power supply Input: AC 100~240V, 2.5A, 50~60 Hz Output: DC 24V 2.5A, 60W
用户界面		6 operation buttons(power, menu, up,down, enter, feed) 2 LEDs with 3 colors 2.4" color TFT display
传感器		Gap transmissive sensor Black mark reflective sensor (position adjustable) Head open sensor Ribbon end sensor
内部字体		8 resident expandable ZPL II bitmap fonts Simplified Chinese, Traditional Chinese Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control Code Page 1250, 1251, 1252, 1253, 1254, 1255, 1256 Support with font 0
图形格式		PCX,BMP
条码类型		1D barcode: UPC-A, UPC-E, Codabar, CODE128, CODE39, CODE93, EAN-8, EAN-13, UCC/EAN128, POSTNET, ITF14, MSI, Plessey, Telepen, GS1 DataBar, German Post Code, Interleaved 2 of 5, Standard 2 of 5, Industrial 2 of 5, CODE11, EAN14 2D barcode: PDF417, Data Matrix, Maxicode, QR Code, MicroPDF471, Aztec
字体和条形码旋转		0, 90, 180, 270 degree

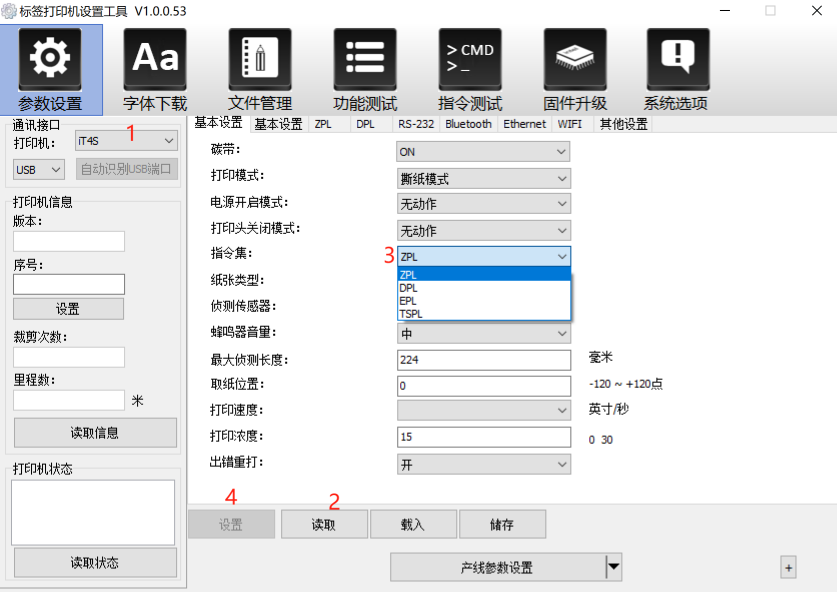

打印机语言		ZPL-II, TSPL, DPL, EPL2
打印介质类型		Continuous, die-cut, black mark, fan-fold, notch
打印介质类型		Standard: Continuous, Tear-Off / Options: Peel-Off, Cut
打印介质宽度		Min 1"(25.4mm) / Max 4.65"(118mm)
打印介质厚度		0.002"(0.06mm) to 0.010"(0.250mm)
打印介质纸筒直径		0.5"(12.7mm)/ 1"(25.4mm)/ 1.5"(38.1mm)
纸仓支持最大纸卷外径		5.0"(127mm)
打印介质长度		Min.: Tear-Off 0.24"(10mm) @ 203dpi, 0.2"(8mm) @ 300dpi Min.: Peel-Off , Cutter 1.0"(25.4mm) Max.: 90"(2,286mm) @ 203dpi, 60"(1,524mm) @ 300dpi
色带类型		Wax, Wax/Resin, Resi
色带长度		328.08 ft (100m)
色带核心直径		0.5"(12.7mm)
色带宽度		Min 1.18"(30mm)/ Max 4.33"(110mm)
环境条件		Operating Temperature: 41° to 122°F (5° to 50°C) (limitations based on selected media) / Operating Humidity: 25 to 85% RH Non-Condensing Storage Temperature: -4° to 140° F (-20° to 60° C) / Storage Humidity: Non-Condensing
安全认证		CCC, FCC, CE, CB, Energy Star
环境条件		RoHS, WEEE
选项		Wi-Fi802.11a/b/g/n/ac Bluetooth 5.2/LE Peel Guillotine cutter

专业级100米碳带热转印条码标签打印机
