分辨率		203dpi, 300dpi
打印方式		热敏和热转印
最大打印速度		12ips @ 203dpi, 10ips @ 300dpi

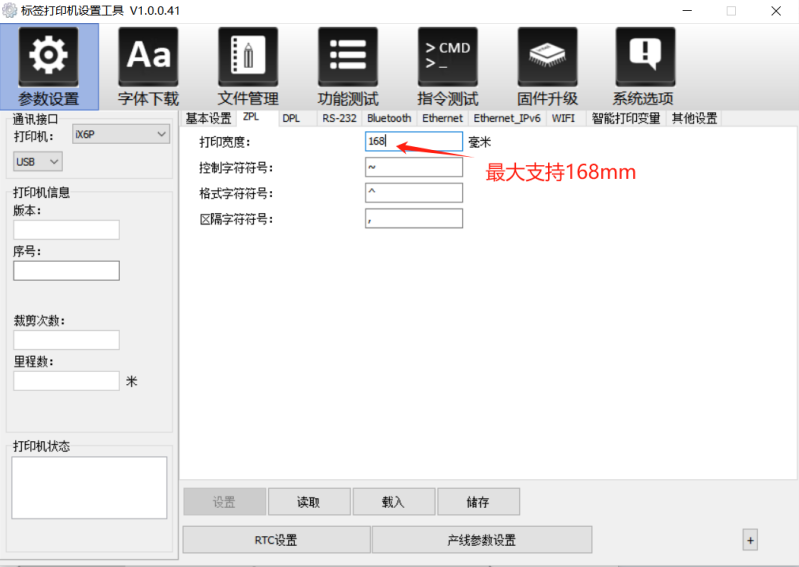

最大打印宽度		6.61"(168mm)
最大打印长度		90"(2,286mm) @ 203dpi, 60"(1,524mm) @ 300dpi, 30"(762mm) @ 600dpi
物理尺寸（宽 x 高 x 深）		12.83"(326mm) × 13.5"(343mm) × 18.19"(462mm)
重量		31.97lbs(14.5kg)
处理器		32-bit RISC CPU
存储		256 MB Flash / 512 MB RAM
接口		Standard: Serial RS232, USB-B, USB Host, Parallel, and Ethernet 10/100Base T Optional: Wi-Fi802.11a/b/g/n/ac, GPIO(factory option), Bluetooth 5.2/LE(factory option)
WiFi安全加密		WEP 40/128bit, WPA Personal (PSK), WPA2 Personal (PSK) Enterprise (AES CCMP)
WiFi安全认证		EAP-TLS, EAP-FAST, EAP-TTLs, PEAPv0/MS-CHAPv2, PEAPv1. EAP-MDS, LEAP
电源		Auto Range 100 ~ 240 AVC (48 ~ 62 Hz)

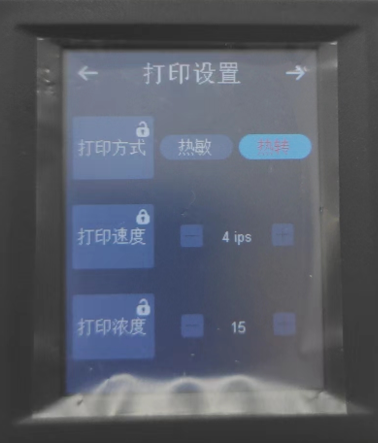

用户界面		1 power switch 8 operation buttons(menu,feed,pause,up,down,back,enter,calibration) 4 LEDs with 3 colors 3.5" color touch display
传感器		Gap transmissive sensor Black mark reflective sensor (position adjustable) Head open sensor Ribbon end sensor
内部字体		8 resident expandable ZPL II bitmap fonts Simplified Chinese, Traditional Chinese Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control Code Page 1250, 1251, 1252, 1253, 1254, 1255, 1256 Support with font 0
图形格式		PCX,BMP
条码类型		1D barcode: UPC-A, UPC-E, Codabar, CODE128, CODE39, CODE93, EAN-8, EAN-13, UCC/EAN128, POSTNET, ITF14, MSI, Plessey, Telepen, GS1 DataBar, German Post Code, Interleaved 2 of 5, Standard 2 of 5, Industrial 2 of 5, CODE11, EAN14 2D barcode: PDF417, Data Matrix, Maxicode, QR Code, MicroPDF471, Aztec
字体和条形码旋转		0, 90, 180, 270 degree
打印机语言		ZPL-II, TSPL, DPL, EPL2
打印介质类型		Continuous, die-cut, black mark, fan-fold, notch
打印介质类型		Standard: Continuous, Tear-Off / Options: Peel-Off, Cut, and Rewind
打印介质宽度		Min 2"(50.8mm) / Max 6.89"(175mm)
打印介质厚度		0.002"(0.06mm) to 0.010"(0.254mm)
打印介质纸筒直径		1.5"(38.1mm)
纸仓支持最大纸卷外径		10.0"(254mm)
打印介质长度		Min.: Tear-Off 0.31"(8mm) @ 203dpi, 0.24"(6mm) @ 300dpi Min.: Peel-Off , Cutter 1.0"(25.4mm) Max.: 90"(2,286mm) @ 203dpi, 60"(1,524mm) @ 300dpi
色带类型		Wax, Wax/Resin, Resi
色带长度		1476.4 ft(450m)
色带核心直径		1.0"(25.4mm)
色带宽度		Min 2.28"(58mm)/ Max 6.77"(172mm)
环境条件		Operating Temperature: 41° to 122°F (5° to 50°C) (limitations based on selected media) / Operating Humidity: 25 to 85% RH Non-Condensing Storage Temperature: -4° to 140° F (-20° to 60° C) / Storage Humidity: Non-Condensing
安全认证		CCC, FCC, CE, BSMI, Energy Star, CB
环境条件		RoHS, WEEE
选项		Wi-Fi802.11a/b/g/n/ac Bluetooth 5.2/LE(factory option) GPIO(factory option) Rewind Peel

宽幅工业条码打印机
